DeWALT 5/8″ x 5″ Power-Stud + SD1 Carbon Steel Wedge Expansion Anchor

Description

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.

Part Number : 7433SD1-PWR
Anchor Diameter : 5/8″
Useable Length : 5″
Thread Length : 3″
Quantity : Pack 25 | Carton 100

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading

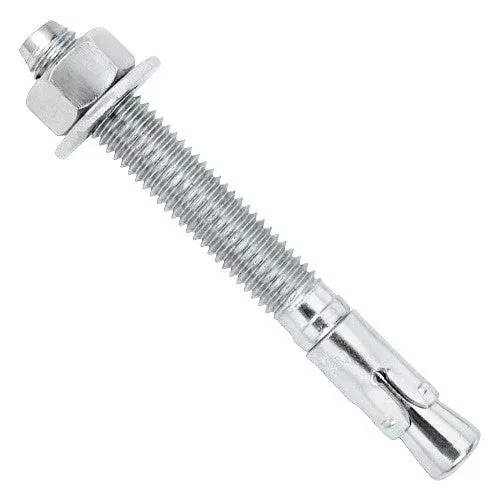

Note: The image displayed is a generic representation of the type of product. Product dimensions and/or thread length may differ from picture. Please see above item description for specifications.
